780w Fixed Solar Array with Frame, Post and any SQFlex Solar Pump with Isolator

  • Image 1
  • Image 2
  • Image 3
Price:
$7,467.00 (inc GST) $6,788.18 (exc GST)
SKU:
780w Gfos Fixed
Quantity:


Product Description

This is the 2nd of our "Big Panel" fixed solar array systems suitable for pumping water from a bore, creek, river, tank or dam.  This unit will do 41,000 L/day at 10m of head, 23,200 L/day at 20m of head and an amazing 6,500 L/day at a massive 90m of head with all of this from only 3 x 260w 24v Australian Made Tindo solar panels.  Manufactured by Grundfos to their exacting standards of quality and reliability, these units will provide water for many years.   This basic system includes:

  • 1 x Grundfos SQ Flex-N submersible solar pump,
  • 3 x Australian Made Tindo 260w 24v solar panels,
  • 1 x DC Isolation switch and necessary cables and plugs,
  • 1 x IWGroup 3 panel array structure with post and all necessary bolts,
  • 1 x Cable connection kit including all necessary glands, cable ties, plugs and sockets,
  • 1 x 10m length of cable with flexible conduit to connect the controller to the top of the bore,
  • All metal components in the pump and motor are 316 stainless steel,
  • Low water level sensor built onto the motor cable (no additional probe cable required),
  • Low and high voltage protection, overload and overtemperature protection,
  • MPPT - maximum power point tracking is included.
  • You select the most suitable pump for the flow and head and this is included in the price here.

We will need to add electrical cable, stainless steel safety cable, pipe, fittings, pressure or flow switch, level switch, freight and installation if required to the basic price.   You will need to supply one or two holes, concrete and labour if you want to install the system yourself.

All of our Grundfos pumps with 2, 3, 4, 6, 8, 10 or 12 panel fixed solar array pump systems are available in DIY kit form and are supplied with all electrical connections completed by our electrician, tested, with plugs, ready for you to install.   We supply every DIY kit with full instructions including photos.



The 3 panel Australian Made Tindo & Grundfos fixed array solar pump unit is one of the "Big Panel" units that we supply but, while it may be small, it is big on performance.   Grundfos has been manufacturing pumps including solar pumps for many years and the name "Grundfos" is synonymous with exceptional quality, reliability and efficiency.   Your solar pump will have a daily task to perform and I am positive that the Grundfos system will be able to perform for many years.

  • 2-year Grundfos warranty on the SQFlex pump and motor,
  • 1-year warranty on the IWGroup steel array structure,
  • 20-year Suntech warranty on the 250w 24v solar panels,
  • 1-year warranty on all other components,
  • 5-year workmanship warranty when we install the complete system.

We design, assemble, test and supply the Grundfos solar pumping units with the minimum life span of 25-years as our goal.   To achieve this, we only supply the best equipment that has been proven in the field and is manufactured by reputable companies.   A Grundfos solar pumping unit is not a cheap unit, it is a combination of exceptionally high quality components that is designed to operate without problems for at least 25-years.

The chart below shows the volume in litres per day that you can expect from a 350w "Big Panel" fixed array system with any of the Grundfos submersible solar pumps that are shown.   These figures have been calculated at Glen Innes for summer flows and they will vary depending on your location and the time of year.

2 Fixed Panels (500w)

Grundfos Solar Pump with Fixed Array

Figures for Glen Innes - Litres per Day in Summer



3 Fixed Panels (750w)

Grundfos Solar Pump with Fixed Array

Figures for Glen Innes - Litres per Day in Summer



































Model

5A-3N

5A-6N

8A-3N

2.5-2N

1.2-2N

0.6-2N



Model

5A-3N

5A-6N

8A-3N

2.5-2N

1.2-2N

0.6-2N































Head















Head













10m

28,000

25,000

24,000

20,000

9,000

5,000



10m

41,000

39,000

44,000

23,000

10,900

5,600































15m



18,000



18,000

9,000

5,000



15m



31,300



22,100

10,600

5,600































20m



11,500



17,000

9,000

5,000



20m



23,200



21,100

10,300

5,400































25m



7,000



15,000

8,500

4,750



25m



16,600



19,600

10,200

5,400































30m







13,000

8,000

4,750



30m







18,000

10,000

5,400































40m







9,000

7,500

4,750



40m







15,200

9,500

5,400































50m







7,000

6,700

4,500



50m







12,500

9,100

5,100































60m







5,000

6,000

4,250



60m







10,000

8,400

5,100































70m







3,200

5,250

4,100



70m







7,500

7,800

4,900































80m







1,900

4,500

3,900



80m







5,400

7,100

4,800































90m







600

3,600

3,600



90m







3,500

6,500

4,600































100m







0

3,000

3,500



100m









6,000

4,500































110m







0

2,500

3,250



110m









5,200

4,300































120m















120m











4100





















































































































































































4 Fixed Panels (1000w)

Grundfos Solar Pump with Fixed Array

Figures for Glen Innes - Litres per Day in Summer



5 Fixed Panels (1250w)

Grundfos Solar Pump with Fixed Array

Figures for Glen Innes - Litres per Day in Summer



































Model

5A-3N

5A-6N

8A-3N

2.5-2N

1.2-2N

0.6-2N



Model

5A-3N

5A-6N

8A-3N

2.5-2N

1.2-2N

0.6-2N































Head















Head













10m

48,200

51,500

62,600

25,000

11,700

6,100



10m

51,400

59,500

74,400

25,600

12,000

6,100































15m



42,700



24,400

11,500

6,000



15m



51,200



25,100

11,800

6,000































20m



33,900



23,600

11,300

5,900



20m



42,300



24,400

11,700

6,000































25m



26,100



22,200

11,300

5,900



25m



33,900



23,200

11,600

6,000































30m







20,800

11,200

5,900



30m







22,100

11,500

6,100































40m







18,400

10,700

5,700



40m







19,900

11,100

5,900































50m







16,300

10,200

5,500



50m







18,100

10,800

5,700































60m







14,100

9,800

5,500



60m







16,000

10,500

5,700































70m







11,700

9,200

5,400



70m







13,900

9,900

5,600































80m







9,300

8,700

5,300



80m







12,100

9,400

5,500































90m







8,000

6,800

5,200



90m







9,800

8,700

5,300































100m









7,400

5,100



100m









8,300

5,200































110m









7,000

4,900



110m









7,800

5,100































120m











4,700



120m











5,000































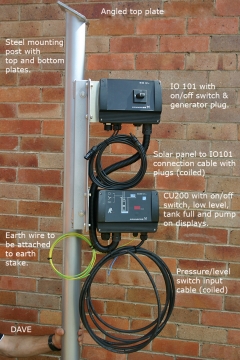

Solar 1.jpg      Solar Post and Controllers.jpg

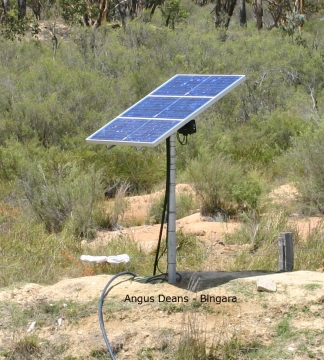

The image above is actually a 3 x GF70 fixed panel array that we installed for Mr Angus Deans on his property at Bingara, NSW.   This unit is supplying around 7,000 litres of water per day from a very old gal steel tank burried in the sandy river bank.   The total time required for assembly and installation was 3 hours and we had water pumping into the dam by shortly before lunch.   This Grundfos solar pump unit will move around 63,875,000 litres of water over the planned life of 25-years.   This works out at a cost of $117-40 per million litres of water pumped.

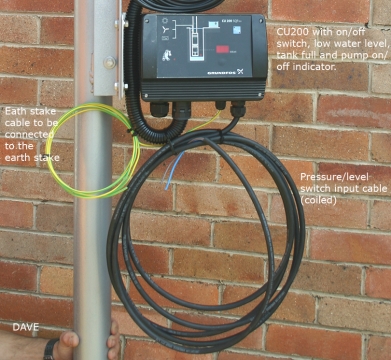

Solar Post and IO101.jpg        Solar Post and CU200.jpg
